TDF-2 Toolbar Mounted Jang Seeder with Fertilizer System, 3 Pt. Hitch & Toolbar

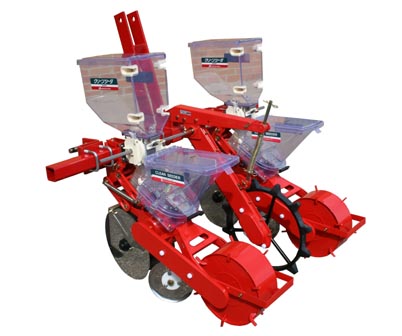

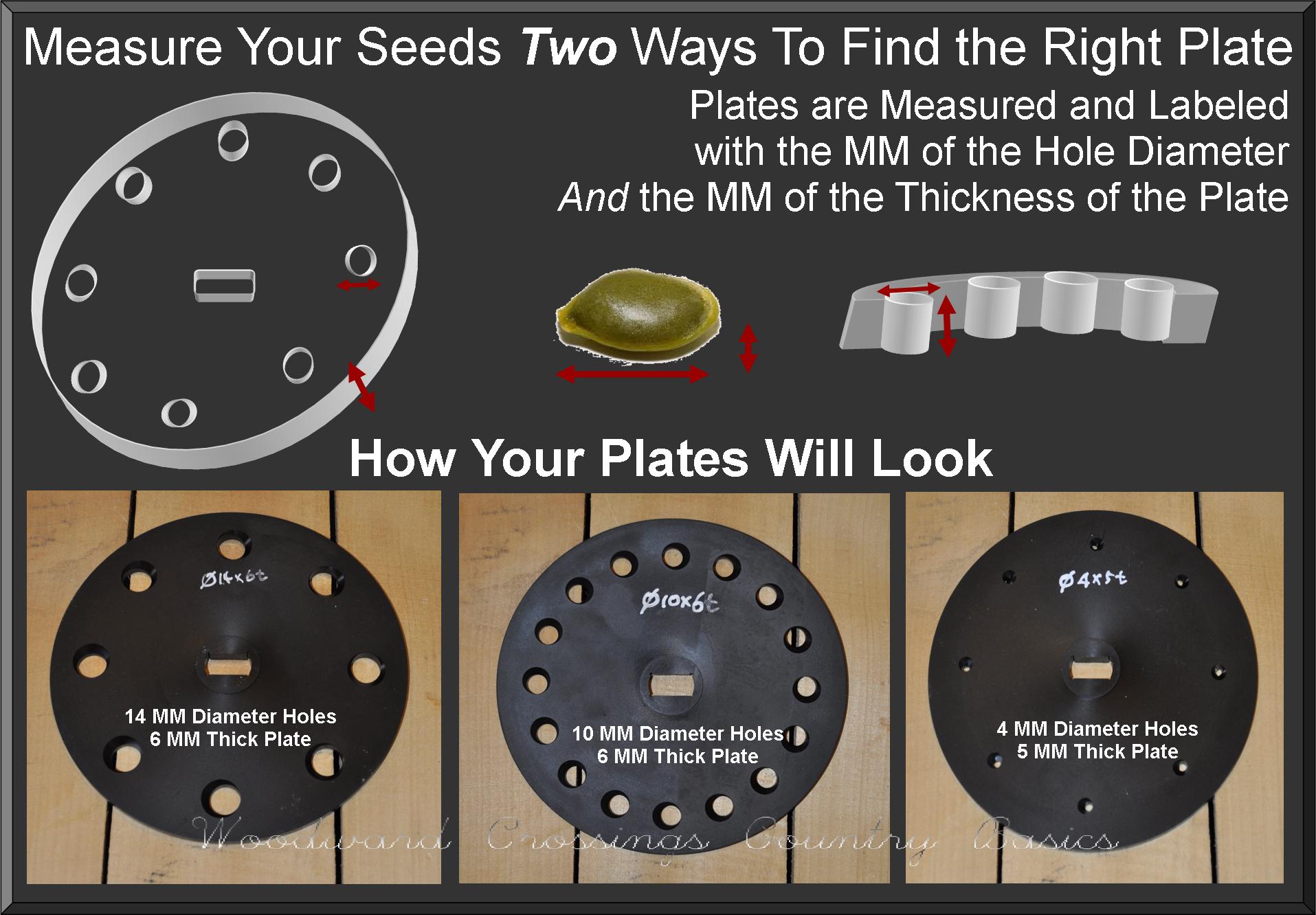

Description TDF-2 Toolbar Mounted Jang Seeder for Large Seeds The TDF-2 Toolbar Mounted Jang Seeder for Large Seeds is a complete setup with (2) TDR-U Units along with a TD-2K Fertilizer System. This TDF-2 Toolbar Mounted Jang Seeder for Larger Seeds comes with Cat I 3 Pt. Hitch & 4 Ft. Toolbar  We Recommend the TD Units for Better Precision Planting on the Larger Seeds Such As Beans and Corn For planting Small Seeds, we recommend the JPH-2 Jang Seeder The TDR Units on the TDF-2 Toolbar Mounted Jang Seeder are individual spring loaded seeding units allowing for  solid planting results on uneven bed tops Jang Seeders are for use in well rototilled soil. The minimum row width on the TDF-2 Toolbar Mounted Jang Seeder is 11″ Measure the Height of Your Seed then the Width of your seed. Match it to the MM of the Plate Height and Width. For Instance: Pumpkins May Fit Best with a 4 MM High Plate Beans, Peas, and Corn May Fit Best with a 6 MM High Plate Matching the Height is to Keep Two Seeds from Lying on Top of Each Other in the Plate Hole Don’t forget to order your TDF-2 Plates  Available TD Plates : TDA2 6MM Thick Plate (8) 5/16” Diameter Holes for TD-1 Seed TD4T 4MM Thick Blank Plate – Drill to Size TD5T 5MM Thick Blank Plate -Drill to Desired Size TD5T8B 5MM Thick Plate 8 Round Pilot Holes TD6T 6MM Thick Blank Plate for TD-1 Seeder TD4T1B 4MM Thick Plate w/Pilot Hole for Pumpkins TD6T16L 6MM Thick Plate for Peas TD6T8P 6MM Thick Plate for Beans Spacing is Adjustable Using Sprockets to Determine Exact Drop of Seed The chart on the chain guard is your “cheat sheet” to what sprockets to use for your desired spacings. Using (and changing) sprockets on the Discharge Shaft and the Drive Shaft, in combination with the seed plates,  the TDF-2 becomes a precision seeder. Click Chart Below for a Larger Copy: For Use with Jang TD and Jang TDR Seeders  Features: Seed plates for larger seeds such as pumpkins and lima beans Standard or Customized plates available Double disc opener standard Large 1.5 gal clear hopper prevent large seeds from “bridging” Uses special anti abrasion plastic disc to prevent static electricity Adjustable handle for height and offset Easy to Use!  Click for Answers to Frequently Asked and Anticipated Questions Just pick out the plate for the application you desire in one single chart! The Jang TD Series comes with 4 sprockets. TDF-2 Toolbar Mounted Jang Seeder ships Freight Truck Request a Shipping Quote Request a Shipping Quote for Freight Truck Shipping Name(Required) First Last Phone(Required)Your Email Address(Required) Enter Email Confirm Email Delivery Name(Required) Delivery Address(Required) Street Address City State AlabamaAlaskaAmerican SamoaArizonaArkansasCaliforniaColoradoConnecticutDelawareDistrict of ColumbiaFloridaGeorgiaGuamHawaiiIdahoIllinoisIndianaIowaKansasKentuckyLouisianaMaineMarylandMassachusettsMichiganMinnesotaMississippiMissouriMontanaNebraskaNevadaNew HampshireNew JerseyNew MexicoNew YorkNorth CarolinaNorth DakotaNorthern Mariana IslandsOhioOklahomaOregonPennsylvaniaPuerto RicoRhode IslandSouth CarolinaSouth DakotaTennesseeTexasUtahU.S. Virgin IslandsVermontVirginiaWashingtonWest VirginiaWisconsinWyomingArmed Forces AmericasArmed Forces EuropeArmed Forces Pacific ZIP Code Shipping Location Information(Required) Residence / Farm / Ranch Zoned Commercial Business w/ Loading Dock Freight Truck Terminal School / College Liftgate Service(Required) No Liftgate Service Needed Liftgate Service Needed For Which Product Are You Inquiring?(Required) The best quotes for shipping are: Business to Business shipments. If you know of a business address to ship to—it is more cost effective. It needs to be zoned commercial, have business hours, business signage, turnaround for a 55 ft. tractor trailer and a forklift. Perhaps you know of a local hardware store, lumber yard, feedmill, landscape shop, welding shop, car parts store etc. that could accept your delivery. Shipping to the nearest terminal is also a good option. Please indicate your Freight Quote and Shipping Address (and any roller changes) in the Additional  Information Box at Check Out. We will call you and add it to your total when we receive the order and email an invoice to you reflecting the added FREIGHT QUOTE. Questions about your order or shipping arrangements? Please do not hesitate to call or email us. Click for a Jang Seeder Catalog Please note: The JPH and TDR Jang Models are not Quick-Hitch Compatible
