Crescent Knives, Left & Right – Use with Beet Knife Shank Holder

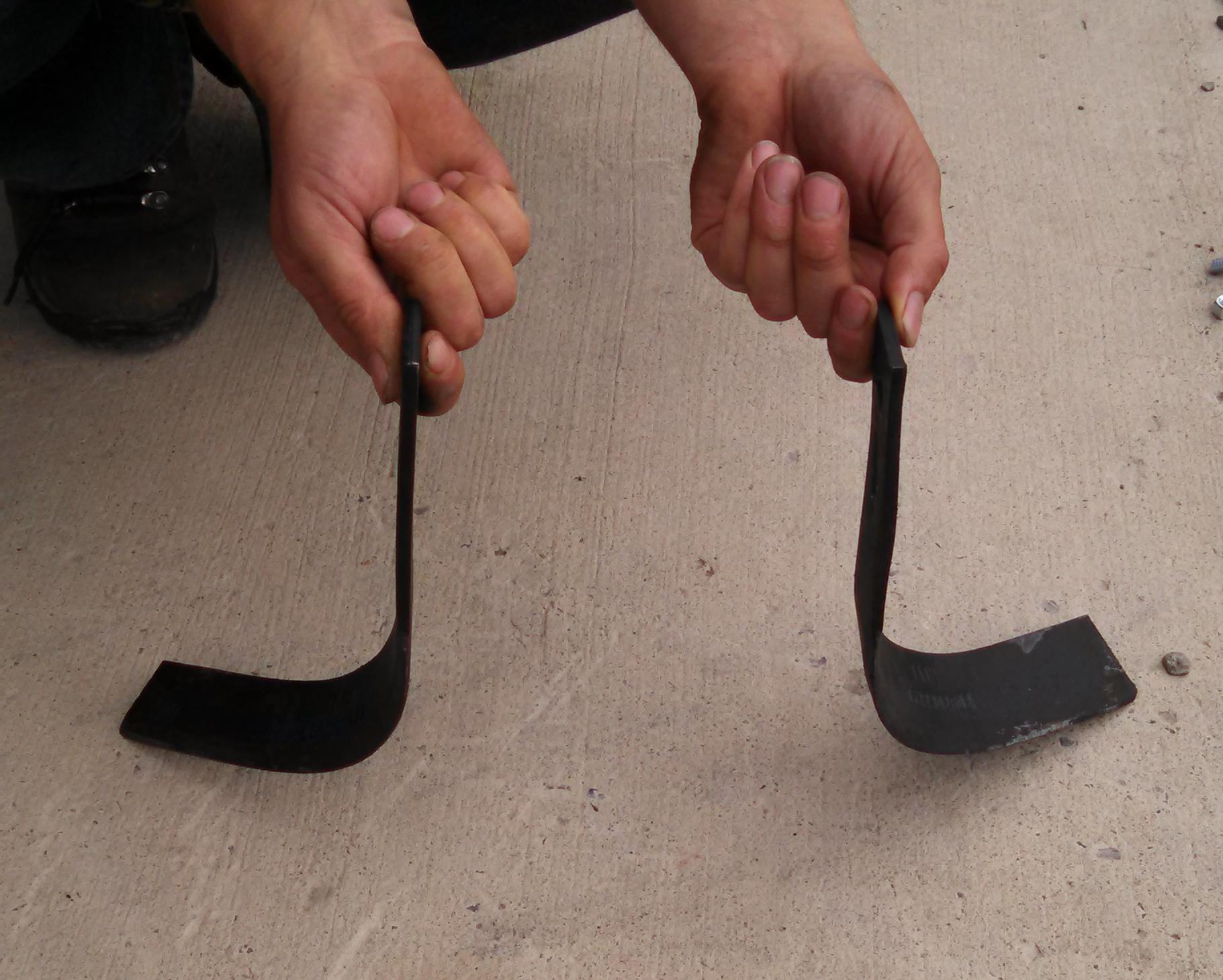

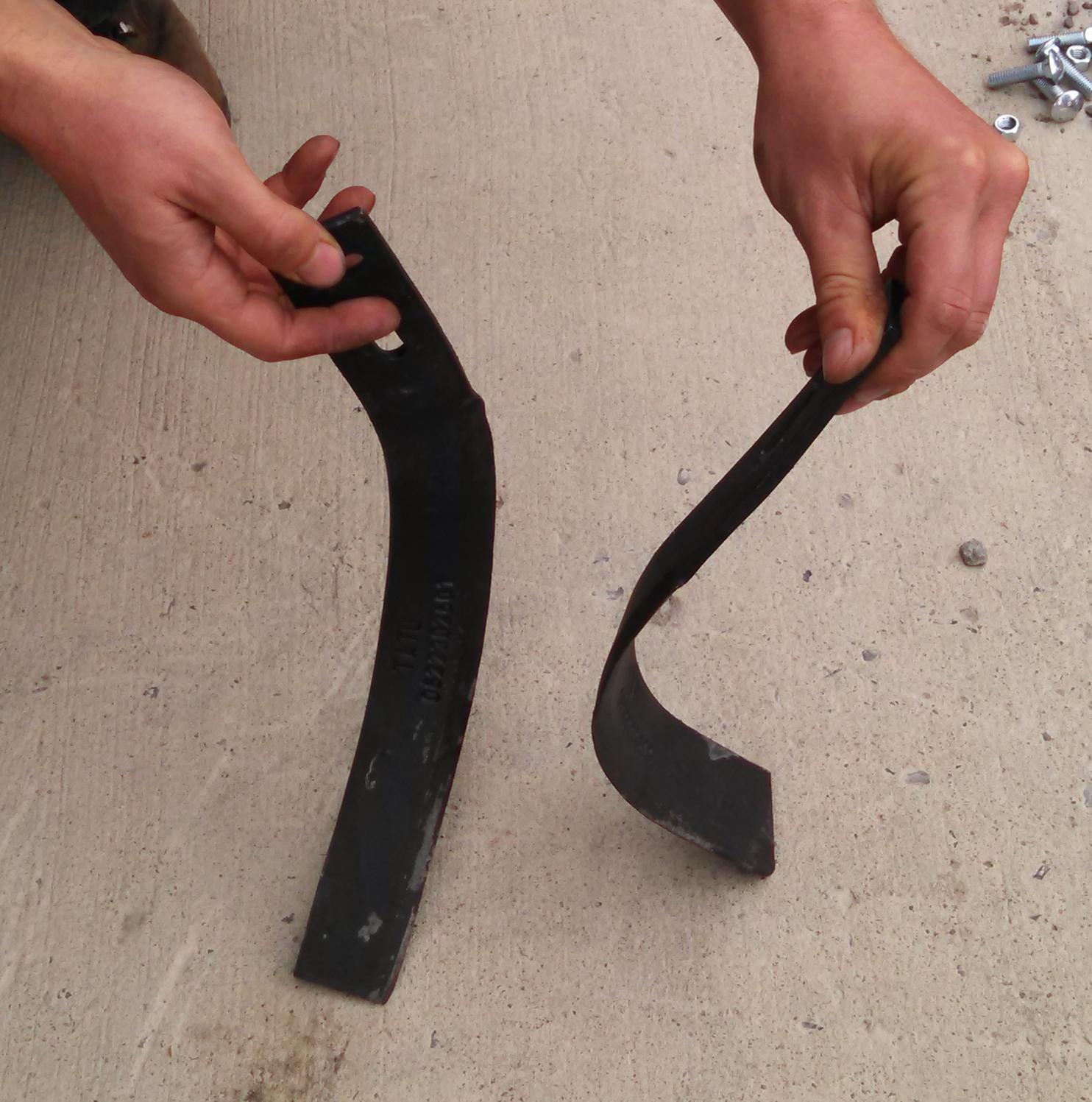

Description  Crescent Knives, Left & Right – Use with Beet Knife Shank Holder  Crescent Knives Description: High carbon, heat treated steel Bolt Hole Size:  3/8” Centers:  1-1/4” to 2” Description:  6” X 1/4” crescent hoe Weight/ea:  1.9 lbs Part#  CH06LR is a Set of Right and Left Crescent Knives to be attached to a Beet Knife Shank as Shown Below: (Sold Separately) To attach to the  Part# BK58 Beet Knife Shank: (2) 3/8″ x 1 1/2″ Carriage Bolts w/ (2) Nuts & (2) Bolts Fork is 1/2″ x 2″ steel welded to a 5/8″ x 2″Shank Beet and/or banana knifing shanks are single offset staggered fork units with 6″ ID spacing between the knives. Beet Knife Shank Holder Shown Below with the Crescent Knives For Assembly – Just Attach the Part# BK58  Beet Knife Shank Holder with Part# CH06LR Crescent Knives to Part# S22Wood Flat Shank Clamp onto a Part# HT02-04-L4 2 x 2 Toolbar  – Sold Separately   With Just 1 Hitch and a Toolbar, You Can Build Many Implements! Heavy Duty – Up to 85 HP Includes Pins Cat I Hitch Pins: Diameter .750″ Useable Length 2.750″ Overall Length 4.500″ WUNDERBAR 3 PT. HITCH DIMENSIONS: 17″ from Top Pin to Lower Pin Upper Link is 3/4″ Lower Links are 7/8″ Pin to Pin – Center to Center – 26″-28 Spacer Bars, Toolbars & Attachments Sold Separately   Hill Potatoes & Build Rows to Keep Dirt Close to Crops by Adding Disc Hillers and Disc Hiller Clamps Dig Potatoes by Adding a Shank, Shank Clamp and a High Sweep Furrower By using 2 “Spacer Bars” to the Wunderbar Cat I Hitch and Adding an Additional Toolbar, You Can Make Your Own 2-Row Cultivator and More! Wunderbar Cat I Hitch with Double Row Cultivator Set Cultivate Crops by adding S-Tines, S-Tine Clamps and Sweeps Our Wunderbar Cat I Hitch is Recommended for Use with our Components or Components that a Similar in Size and Function Part #HT02-04-L4 Toolbar Sold Separately One Toolbar, One Hitch and Create Many Implements in Just a Few Minutes! Tools Needed: 1 5/16” Socket to snug up the Toolbar on the 3 Pt. Hitch 1 1/8 Socket to snug up the Disc Hiller Clamps to the toolbar 9/16” wrench to tighten up the Disc Hillers in the Disc Hiller Clamp 5/8” Wrench to snug up Flat Shank to the Flat Shank Clamp ¾” Wrench to snug up Flat Shank Foot Pieces (2) 3/8” x 3” bolts and washers to affix the Furrower to the Foot Piece 9/16” Wrench to snug up the bolts to Foot Piece and Furrower Snug up Elliptical Bolts on S-Tines with 9/16” wrench 3/8” x 3 Carriage bolts for S-Tine Clamps and 7/16” Nuts to fasten the S-Tine Clamps to the Toolbar 11/16” wrench to snug up the bolts on the S-Tine Clamps Wowsers! Above is a pic submitted by David Mastin of New York. Showing our CAT I 3 Pt. Hitch, 18″ Spacers, 6 Ft. Toolbars, our 5/8″ Shanks, and Straight Chisel Spikes. David painted his toolbars John Deere Green. Quite impressive! Thanks, Dave for Sharing!
