Wunderbar Single Row Cultivator Set w/4 S-Tines, Sweeps- No Hitch or Toolbar

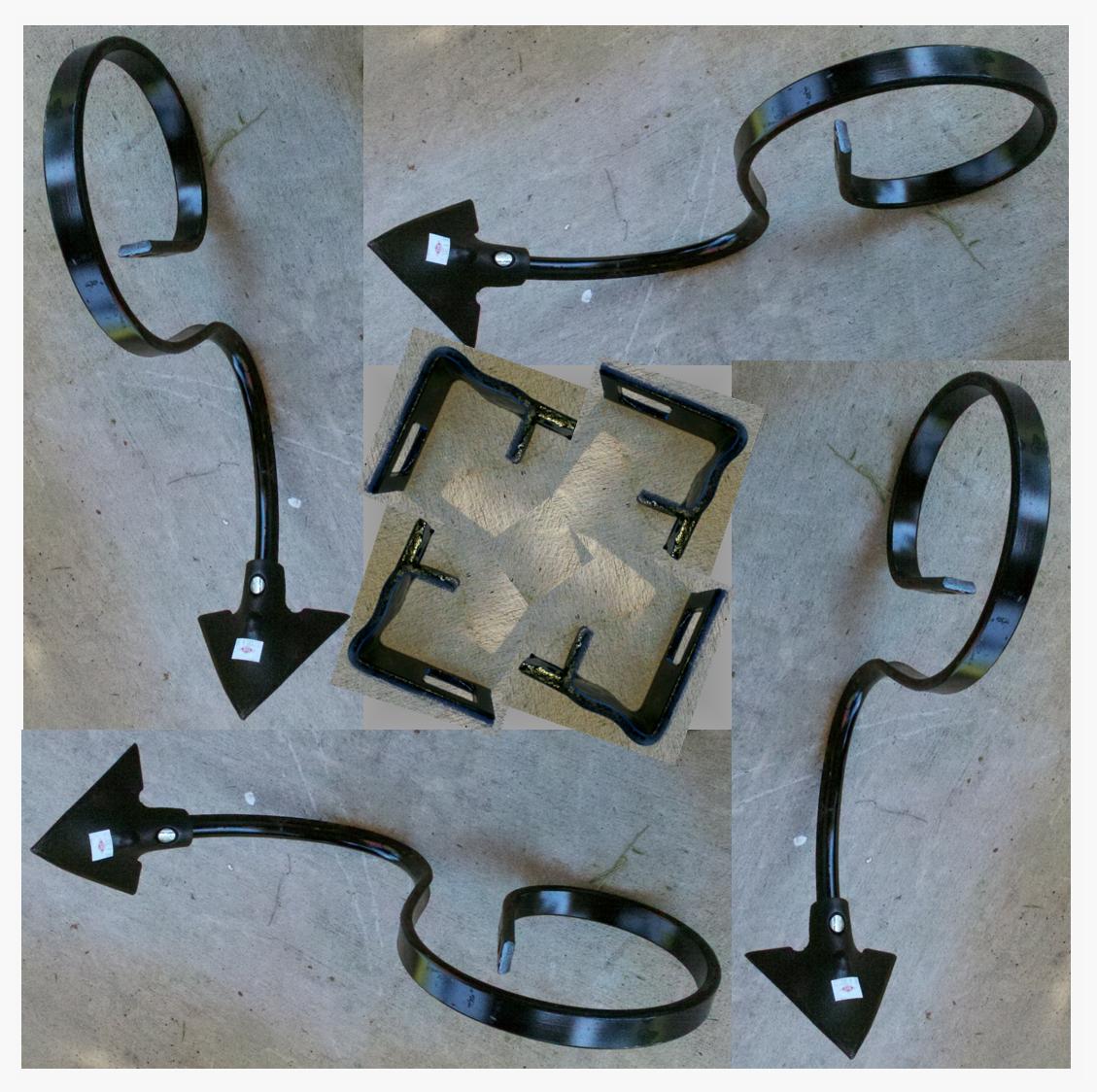

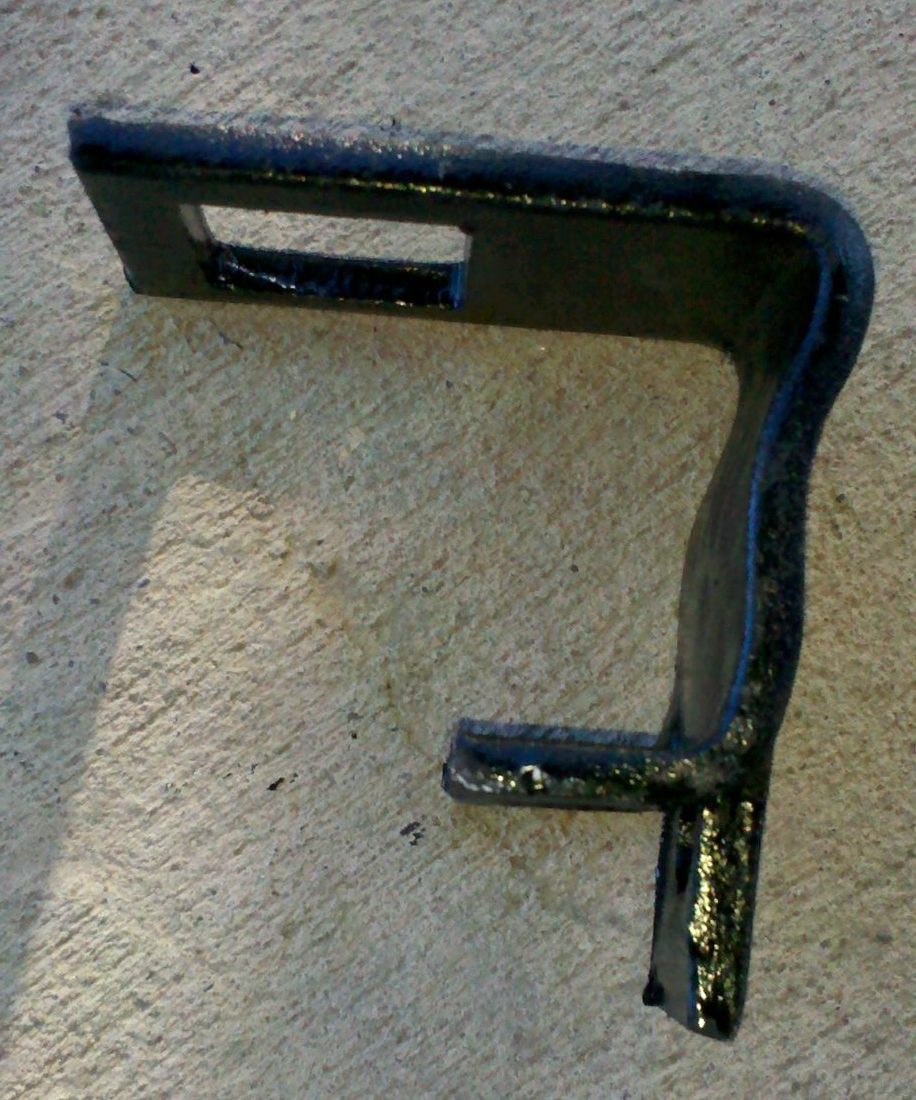

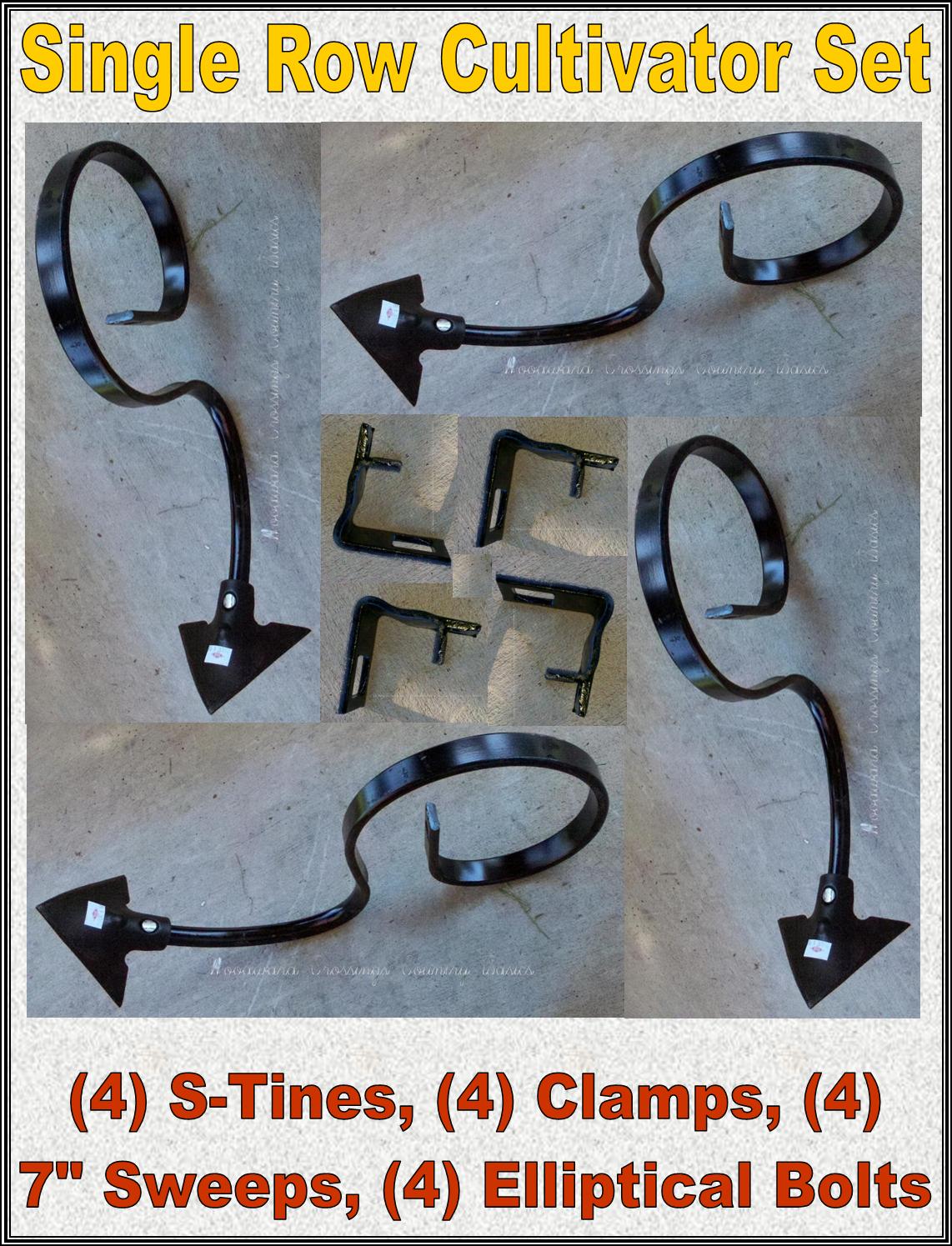

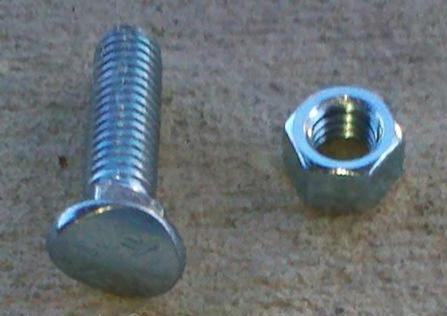

Description Wunderbar Single Row Cultivator Set w/4 S-Tines, Sweeps- No Hitch or Toolbar This Wunderbar Single Row Cultivator is a “Set” which uses the Cat I  2 x 2 Hitch & Toolbar to make a Complete Single Row Cultivator Note: S-Tines are only to be used as secondary tillage and used to cultivate in well rototilled gardens.  22″ x 1-1/4″ Standard tine. Length is 14 1/2″ from the Toolbar to Shank Bottom S-Tines and clamps are made to demanding OEM specifications. Tines are constructed of high quality steel with rounded edges – shot peened and painted black. Set Your Individual Spacings with the Wunderbar Single Row Cultivator Your Part# SRCS  Wunderbar Single Row Cultivator Set Includes: (4) Standard S-Tines, 32mm X 10mm X 560mm 14 1/2″ Bar to Shank Bottom – Part# 76A385 (4) Elliptical Bolts for Sweeps – Part# 7A9080 (4) 7 Inch Sweeps – Part# 76A383 – Other sizes available at Checkout (4) S-Tine Clamps – Part# 76A388 (4) 7/16″ x 3″ Carriage Bolts and Nuts for the Clamps Check out our other Wunderbar Sets: Gauge Wheel Set w/ Clamps Tire Track Eraser Set Double Row Cultivator Set Potato Plow Set Disc Hiller Set Assembly of the Wunderbar Single Row Cultivator Set below: Start with your Wunderbar Cat I Hitch  Part# Cat I 2×2 and Toolbar Part#  HT02-04-L4 (Sold Separately) Wunderbar Cat I 3 Pt. Hitch Heavy Duty – Up to 85 HP Add a Toolbar  (Sold Separately) Snug up Toolbar on the 3 Pt. Hitch with a 1 5/16″ Air Ratchet Last Steps: Bolt on 7 Inch Sweep with Elliptical Bolts on an S-Tine Using the Clamps, Attach the S-tines and Sweeps to the Toolbar with 7/16″ x 3″ Carriage Bolts (provided) At Check Out, you may chose different size Sweeps Also, at Check Out, you may chose High Clearance Tines It’s All About Versatility! See pic below:  Johnny Parker at Edible Earth Farm, Sandy Lake, PA has Direct Seeded Crops with JPH-4 and Cultivated with Wunderbar S-Tine Cultivator Or perhaps you would want a Double Row Cultivator Set up?  Check out our 2-Row Cultivator Set with 9 S-Tines & Sweeps! With Just 1 Hitch and a Toolbar, You Can Build Many Implements! Heavy Duty – Up to 85 HP Includes Pins Cat I Hitch Pins: Diameter .750″ Useable Length 2.750″ Overall Length 4.500″ WUNDERBAR 3 PT. HITCH DIMENSIONS: 17″ from Top Pin to Lower Pin Upper Link is 3/4″ Lower Links are 7/8″ Pin to Pin – Center to Center – 26″-28 Spacer Bars, Toolbars & Attachments Sold Separately   Hill Potatoes & Build Rows to Keep Dirt Close to Crops by Adding Disc Hillers and Disc Hiller Clamps Wunderbar Potato Plow Bundle w/ Wunderbar Cat I Hitch Dig Potatoes by Adding a Shank, Shank Clamp and a High Sweep Furrower By using 2 “Spacer Bars” to the Wunderbar Cat I Hitch and Adding an Additional Toolbar, You Can Make Your Own 2-Row Cultivator and More! Cultivate Crops by adding S-Tines, S-Tine Clamps and Sweeps Our Wunderbar Cat I Hitch is Recommended for Use with our Components or Components that a Similar in Size and Function Part #HT02-04-L4 Toolbar Sold Separately One Toolbar, One Hitch and Create Many Implements in Just a Few Minutes! Tools Needed: 1 5/16” Socket to snug up the Toolbar on the 3 Pt. Hitch 1 1/8 Socket to snug up the Disc Hiller Clamps to the toolbar 9/16” wrench to tighten up the Disc Hillers in the Disc Hiller Clamp 5/8” Wrench to snug up Flat Shank to the Flat Shank Clamp ¾” Wrench to snug up Flat Shank Foot Pieces (2) 3/8” x 3” bolts and washers to affix the Furrower to the Foot Piece 9/16” Wrench to snug up the bolts to Foot Piece and Furrower Snug up Elliptical Bolts on S-Tines with 9/16” wrench 3/8” x 3 Carriage bolts for S-Tine Clamps and 7/16” Nuts to fasten the S-Tine Clamps to the Toolbar 11/16” wrench to snug up the bolts on the S-Tine Clamps Wowsers! Above is a pic submitted by David Mastin of New York. Showing our CAT I 3 Pt. Hitch, 18″ Spacers, 6 Ft. Toolbars, our 5/8″ Shanks, and Straight Chisel Spikes. David painted his toolbars John Deere Green. Quite impressive! Thanks, Dave for Sharing! Buy a Wunderbar Bundle – then –add a Set to your Bundle Bundles: #DHB Wunderbar Disc Hiller Bundle w/ Hitch, Hillers, & Clamps #DRCB Wunderbar Double Row Cultivator Bundle w/ 9 S-Tines & Sweeps w/ Hitch & Toolbar #PPB Wunderbar Potato Plow Bundle with 3 Pt. Hitch and Toolbar #SRCB Wunderbar Single Row Cultivator Bundle w/4 S-Tines & Sweeps Sets: #DHS Wunderbar Disc Hiller Set – Without Toolbar & Hitch #DRCS Wunderbar Double Row Cultivator Set w/ 9 S-Tines & Sweeps & 1 Toolbar-No Hitch #PPS Wunderbar Potato Plow Set – Add to a 3 Pt. Hitch & Toolbar #SRCS Wunderbar Single Row Cultivator Set w/4 S-Tines, Sweeps- No Hitch or Toolbar Our Wunderbar Module gives you the flexibility to select the components that best suits your individual 3 Pt. Hitch needs. Consisting of Cultivators, S-Tines, Disc Hillers, Row Hippers, Sweeps, Clamps, Bolts, Potato Plows, Middlebusters, Shanks, Spacers & more, the Wunderbar Module can be assembled to keep your garden productive! Customer writes: “I just wanted to let you know how impressed I am with your Wunderbar. I purchased the Disc Hiller & Potato Plow and they both worked GREAT. I can’t believe how sturdy everything is and your pricing can’t be beat. You can bet I’ll be back for more “toys”. Thanks” Andy Parker Saves Time! Saves Space! Saves Money! “Got my packages and already put the cultivator to use!  Exactly what I was looking for!  Works like a charm!  I had been searching for a 72″ bar for about a year.  The perfect fit.  Most everything is geared for 60″ or less.  Should last a lifetime.  Thanks so much.” D.G., Maine
