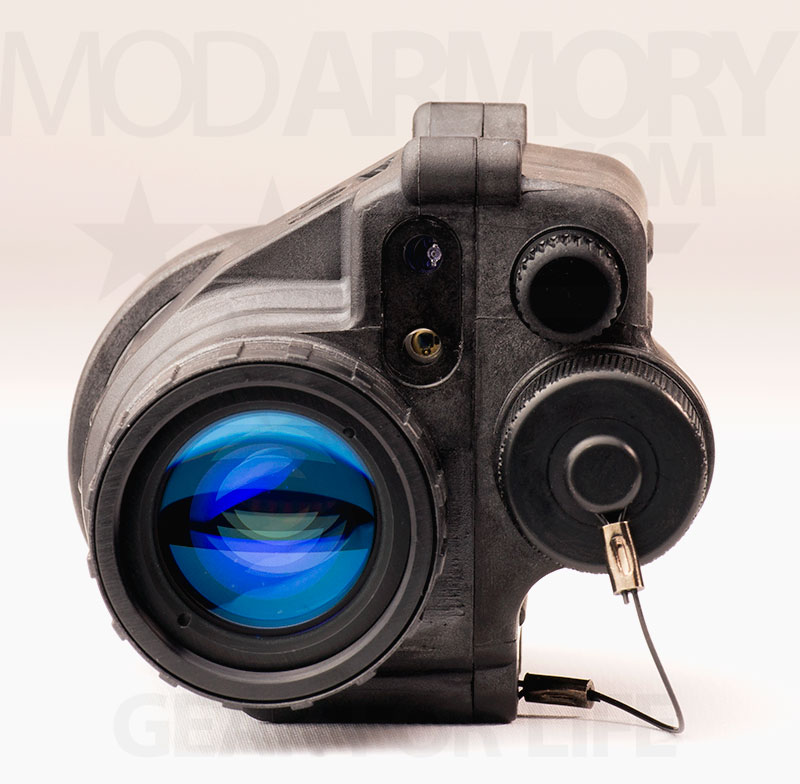

Elbit PVS-14 Night Vision Autogated Gen 3 Green Phosphor

Description Elbit PVS-14 Night Vision Autogated Gen 3 Green Phosphor Hand Select Definition: No bright spots, no 3,000ths or larger spots, no scintillation, no shading, no fixed pattern noise, no chicken wire, and no honeycomb. Description of Tube: Elbit PVS-14 Night Vision Autogated Gen 3 F9810SLG (MX-11769) image intensifier tubes consists of a high-efficiency GaAs photocathode bonded to a glass input window, a micro channel plate (MCP) current amplifier, and a P-43 phosphor screen deposited on an inverting fiber-optic output window. The Gen 3 photocathode is very sensitive to low-radiation levels of visible and, especially, near infrared light. It also provides very high signal-to-noise ratio (SNR) for extended detection ranges at very low light levels as well as variable gain to optimize performance in the Elbit PVS-14 Night Vision Autogated Gen 3 . Export Restrictions Warning: Export of U.S. manufactured night vision equipment is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls, in accordance with International Traffic in Arms (ITAR), Title 22, Code of Federal Regulations Part 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control @ (202) 663-1282 and / or the U.S. Department of Commerce. The 6-micron channel spacing in Elbit’s MCP provides exceptional resolution. The MCP has a thin ion-barrier film that preserves photocathode sensitivity during operation, thereby greatly extending the life of Gen 3 tubes compared to Gen 2. Elbit continues to improve Gen 3 MX-11769 image intensifier tubes to increase operational range and situational awareness for the user. Equipped with an auto-gated power supply, the versions provide truly outstanding performances in high-light or light-polluted areas, such as urban environments. In addition, the  tube provides a much reduced halo. Elbit’s MX-11769 Gen 3 18-mm image intensifier is completely self-contained with an integral high-voltage power supply. Equipped with automatic brightness control (ABC), this power supply provides constant output image brightness as light levels increase. It also provides bright-source protection to guard the tube against exposure to high levels of light.   Minimum Specifications: Signal to Noise: 23 Resolution Lp/mm: 64 Figure of Merit (FOM): 1800-2000 Upgrades found only at MOD Armory: Single AA Battery Housing (current mil issue) Metal infinity stop ring (we replace the plastic infinity stop ring for weapon mounting) The warranty for this system consists of a five year image intensifier warranty and a five year system warranty. MOD Armory PVS-14 Standard Kit PVS-14 monocular Head gear (Skull Crusher) J-Arm Sacrificial window Demist shield Lens cap Magnetic Compass Rubber eyecup 2 x AA battery Soft carry case Carry strap Operators manual Cleaning cloth Warranty registration card Notes: This is a standard kit for the PVS-14 which includes all essential components to be hand-held or in the head mounted configuration.
