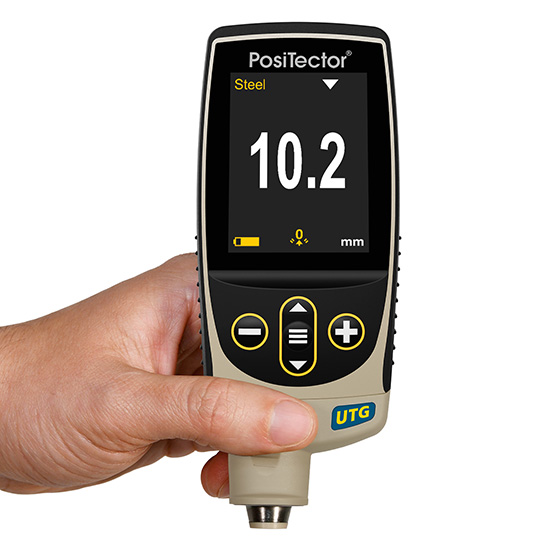

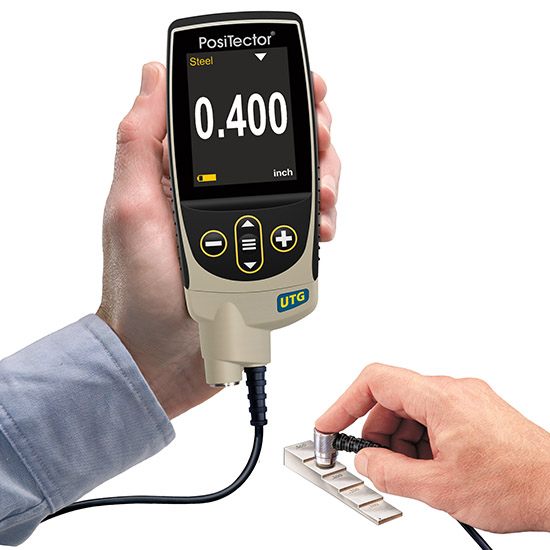

DeFelsko PosiTector UTG Ultrasonic Thickness Gauge

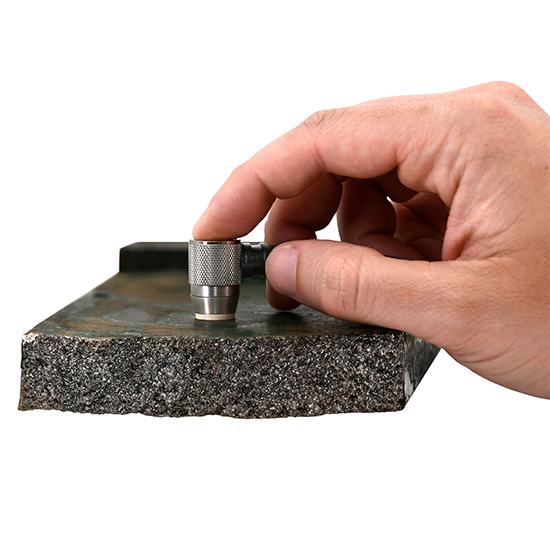

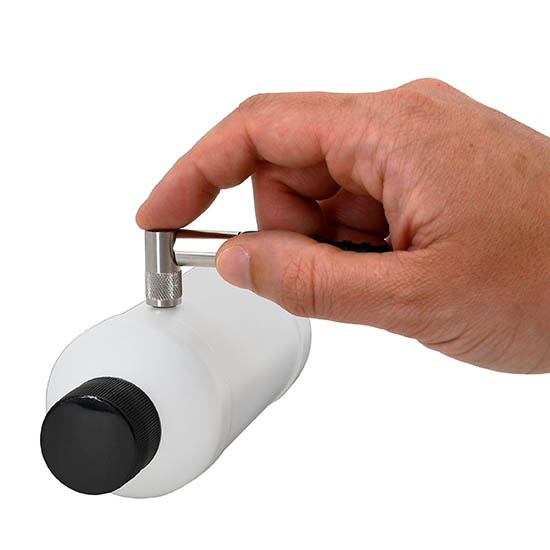

Ultrasonic Wall Thickness Measurement / Ultrasonic Metal Thickness   The PosiTector Ultrasonic Thickness gauge measures the wall thickness of materials such as steel, plastic and more using ultrasonic technology. Ideal for measuring the effects of corrosion or erosion on tanks, pipes or any structure where access is limited to one side. Multiple echo (UTG M) Thru-Paint models allow the steel thickness gauge to measure the steel thickness of a painted structure without having to remove the coating. The PosiTector Ultrasonic Thickness Gauge uses precision ultrasonic transducers provide fast, accurate readings Solvent, acid, oil, water, and dust resistant – weatherproof Pre-programmed velocities – Simply select from a list of common materials or enter your own with ease Min Scan – Measurement rate of up to 20 readings per second with onscreen min and max for quick inspection over a large area PosiTector interchangeable platform – attach any PosiTector probe to a single gauge body USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software Simple Pre-programmed velocities—simply select from a list of common materials or enter your own with ease Smart Couple™ mode eliminates unintentional decoupling—ensure continuous measurements while measuring on scaled or pitted surfaces—ideal for analyzing large areas using multiple passes NEW Larger 2.8″ impact resistant color touchscreen with redesigned keypad for quick menu navigation NEW On-gage help explains menu items at the touch of a button RESET feature instantly restores factory settings Accurate Precision ultrasonic transducers provide fast, accurate readings Certificate of Calibration (Long Form) showing traceability to NIST or PTB included Built-in temperature compensation ensures measurement accuracy Conforms to national and international standards including ASTM E797 Powerful Min Scan mode—take continuous readings and record min/max thicknesses—ideal for quick inspection over a large area Statistics Mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring NEW Screen Capture—save 100 screen images for record keeping and review NEW Instant-on feature quickly powers up the gage if recently powered down NEW Up to 30% longer battery life USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included. PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required. Includes PosiSoft suite of software for reviewing and reporting data Every stored measurement is date and time stamped Versatile PosiTector body accepts all PosiTector probes easily converting from an ultrasonic wall thickness gage to a coating thickness gage, surface profile gage, dew point meter, soluble salt tester, or hardness tester NEW Auto rotating display with Flip Lock Single or two point adjustment Inch/mm switchable Selectable display languages Extended cables available (up to 20 m/60 ft) for underwater or remote measuring
