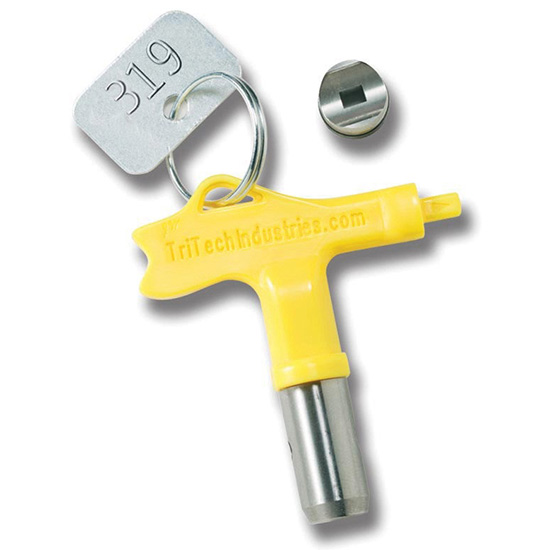

Road Marking Sharp Liner Airless Spray Tips

Tritech’s Road Marking/Sharp Liner is a tip designed for line striping roads, parking lots, airports, athletic fields and interior floors of industrial warehouses. The spray pattern is designed to give sharp distinct lines with minimal overspray. TriTech’s unique manufacturing processes results in a precise fan width and flow rate which is unmatched in the industry. The TriTech Road Marking/Sharp Liner reversible striping tips can be used on any airless line striping machine. The corresponding safety guards are 200-999 for 7/8″ and 200-998 for 11/16″. TRITECH SHARP LINER (202-XXX) ORIFICE FAN WIDTH IN INCHES FLOW RATE Inches 2″ Line 4″ Line 6″ Line 12″ Line GPM LPM .013″ 213 0.18 0.68 .015″ 215 315 0.24 0.91 .017″ 217 317 417 0.31 1.18 .019″ 219 319 419 0.38 1.44 .021″ 321 421 621 0.47 1.79 .023″ 323 423 623 0.57 2.17 .025″ 325 425 625 0.67 2.55 .027″ 327 427 627 0.77 2.93 .029″ 329 429 629 0.9 3.42 .031″ 331 431 631 1.03 3.91 .035″ 435 635 1.31 4.98 .039″ 1.63 6.19 .043 1.98 7.52
