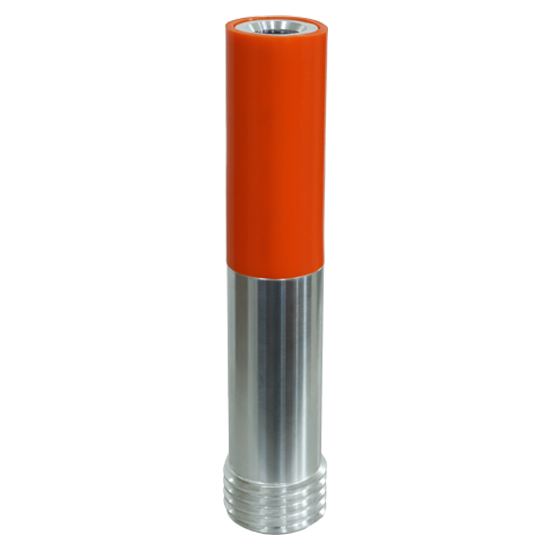

Venturi Blast Nozzles Venturi nozzles are the most popular blast nozzles, designed with a shape that aids the acceleration of abrasives. Venturi nozzles are made up of an aluminum sleeve with a urethane jacket which acts as a seal. XP Venturi Nozzles have an inner liner made out of tungsten carbide. The design of the long venturi has been enhanced for optimal performance. This nozzle will outperform a standard long venturi nozzle by at least 40% if not more. Used in hydro blasting to compensate for loss in performance due to water tension or on tough coatings and heavy corrosion. The weight of the nozzle is 3 times the weight of a standard venturi nozzle. The cost saving in the performance of this nozzle could be covered in the first 3-5 days of blasting Thread size: 50 mm Venturi Nozzle Air Consumption Nozzle sizeNozzle Consumption @ 7 Bar Helmet ConsumptiomConsumption Total6.5 mm - 84 CFM - 5 CFM - 89 CFM8 mm - 134 CFM - 5 CFM - 139 CFM9.5 mm - 196 CFM - 5 CFM - 201 CFM11 mm - 254 CFM - 5 CFM - 259 CFM12.5 mm - 338 CFM - 5 CFM - 343 CFM Air Consumption Comparison Nozzle size4 bar5 bar7 barHelmet Consumption (Add)Consumption TotalSuggested Compressor Reserve6.5 mmVenturi// - 84CFM -2360 lpm - 5 CFM - 140 lpm -89 CFM50-100 %Low Pressure//////8 mmVenturi// - 137 CFM -3836 lpm - 5 CFM - 140 lpm -142 CFM50-100 %Low Pressure - 89 CFM - 2492 lpm - 101 CFM - 2828 lpm/ - 5 CFM - 140 lpm -94 - 106 CFM50-100 %9.5 mmVenturi// - 196 CFM - 5488 lpm - 5 CFM - 140 lpm -201 CFM50-100 %Low Pressure - 126 CFM - 3582 lpm - 143 lpm - 4004 lpm/ - 5 CFM - 140 lpm -131 - 148 CFM50-100 mmVenturi// - 254 CFM - 7112 lpm CFM - 5 CFM - 140 lpm -259 CFM50-100 %Low Pressure//////12.5 mmVenturi// - 338 CFM - 9464 lpm - 5 CFM - 140 lpm -343 CFM50-100 %Low Pressure - 224 CFM - 6372 lpm - 252 CFM - 7056 lpm/ - 5 CFM - 140 lpm -229 - 257 CFM50-100 %
