Low Pressure 4-5 bar Blast Nozzles
$11.22
$17.95

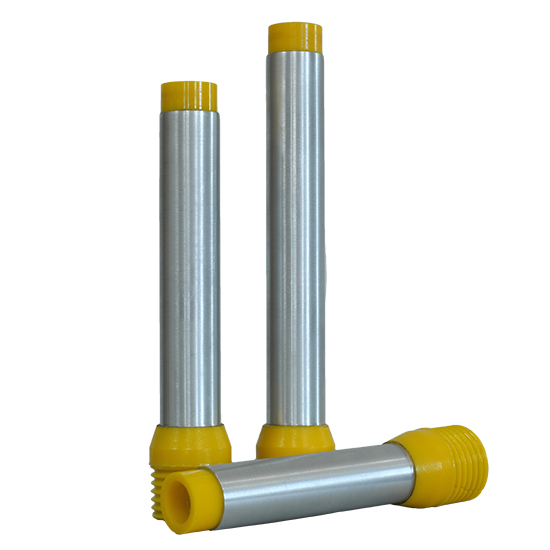

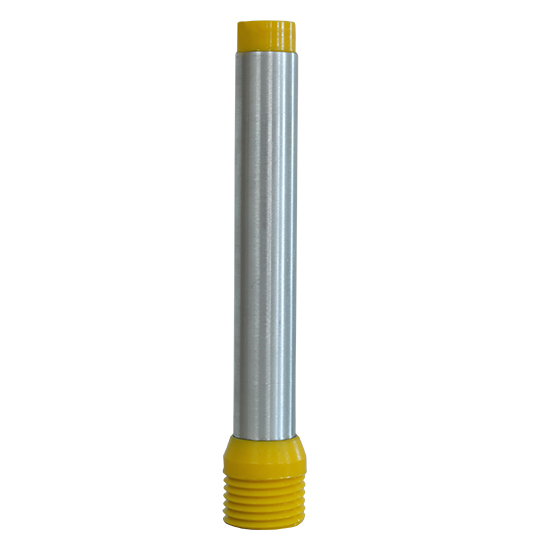

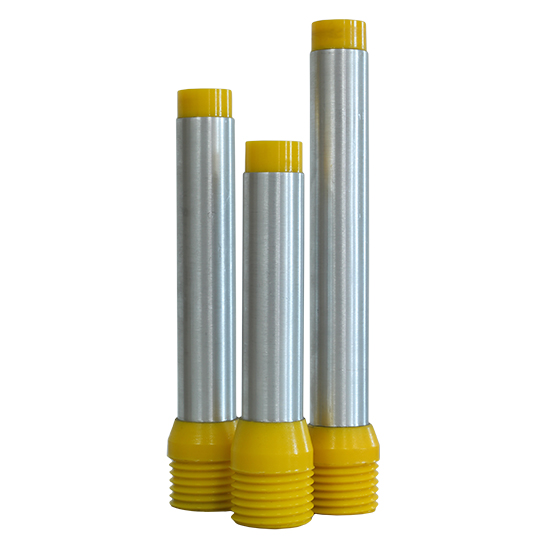

New Technology in Nozzle Design! About Low Pressure Blast Nozzles Low pressure blast nozzles are the latest technology in nozzle design, offering the same performance as 7 bar nozzles at a much lower pressure. It’s lightweight and low noise design significantly improves operators safety and fatigue. Advantages No Drop in Production Same performance & profile readings as 7 bar nozzles. Complete with built-in seal for nozzle holder. 35% Less Air Requirement New design technology allows for lower air consumption = smaller compressor. Reduced Operator’s Fatigue Light-weight silicon nitride nozzle and lower pressure reduces operator’s fatigue. Improved Safety Overall drop in pressure improves safety and lowers noise levels (dB). Increased Life-Span Less prone to fracture & more durable than tungsten carbide nozzles. Low Pressure Nozzles Air Consumption 4 bar5 bar7 bar8 mm - 89 CFM - 101 CFM - 137 CFM - 2492 lpm - 2828 lpm -3836 lpm9.5 mm - 126 CFM - 143 CFM - 196 CFM - 3528 lpm - 4004 lpm -5488 lpm12.5 mm - 224 CFM - 252 CFM - 338 CFM - 6372 lpm - 7056 lpm - 9464 lpm Air Consumption Comparison Nozzle size4 bar5 bar7 barHelmet Consumption (Add)Consumption TotalSuggested Compressor Reserve6.5 mmVenturi// - 84CFM -2360 lpm - 5 CFM - 140 lpm -89 CFM50-100 %Low Pressure//////8 mmVenturi// - 137 CFM -3836 lpm - 5 CFM - 140 lpm -142 CFM50-100 %Low Pressure - 89 CFM - 2492 lpm - 101 CFM - 2828 lpm/ - 5 CFM - 140 lpm -94 - 106 CFM50-100 %9.5 mmVenturi// - 196 CFM - 5488 lpm - 5 CFM - 140 lpm -201 CFM50-100 %Low Pressure - 126 CFM - 3582 lpm - 143 lpm - 4004 lpm/ - 5 CFM - 140 lpm -131 - 148 CFM50-100 mmVenturi// - 254 CFM - 7112 lpm CFM - 5 CFM - 140 lpm -259 CFM50-100 %Low Pressure//////12.5 mmVenturi// - 338 CFM - 9464 lpm - 5 CFM - 140 lpm -343 CFM50-100 %Low Pressure - 224 CFM - 6372 lpm - 252 CFM - 7056 lpm/ - 5 CFM - 140 lpm -229 - 257 CFM50-100 %
