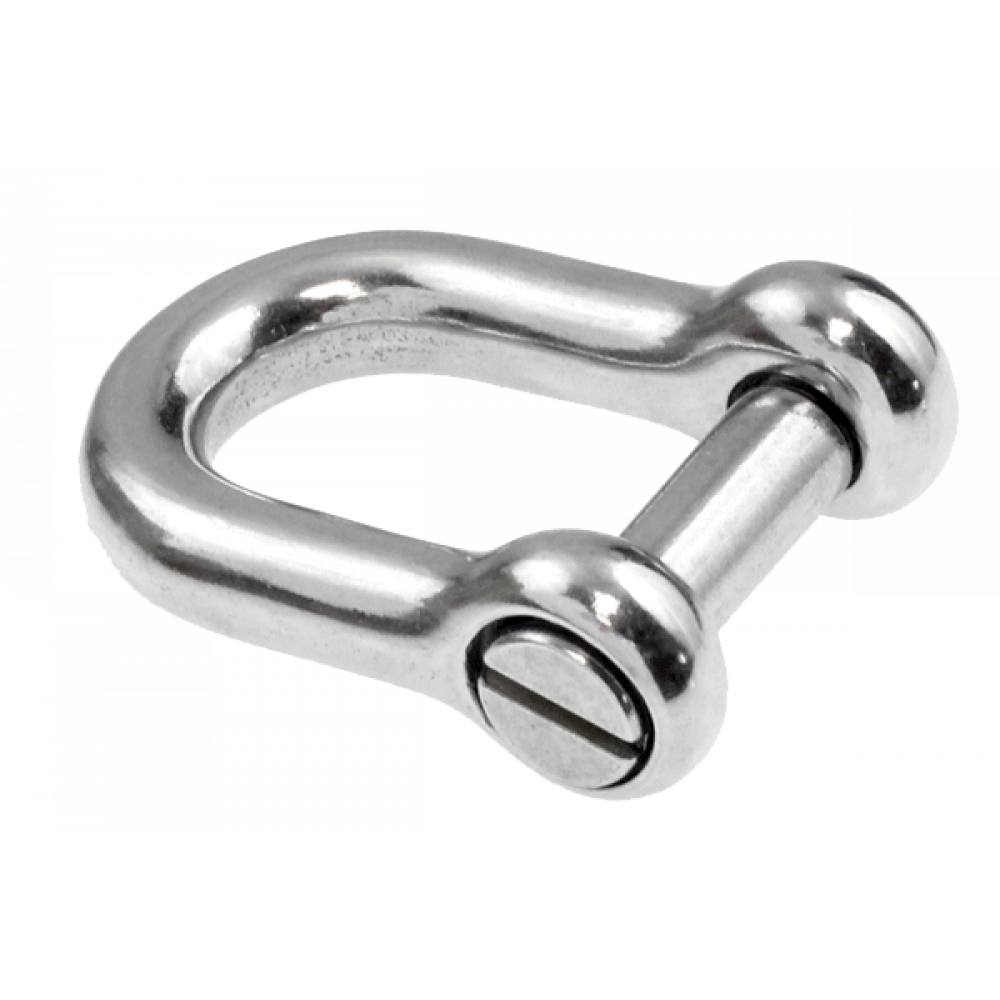

Dee Shackle Slot Head – Forged – ALL SIZES

Dee Shackle Slot Head Forged AISI 316 Miami Stainless Slot Head Shackles are made from high quality AISI 316 marine grade stainless steel.  Miami Stainless stainless steel shackles are specifically designed for general purpose, Marine and shade sail applications where the head of the pin needs to be concealed or kept fastened. CODE SIZE D A L1 L2 BREAK LOAD* TYPE S360C-04 4 4 8.7 14.5 20 552 Cast S360C-06 6 6 12.5 21.5 30 1700 Cast S360CF-06 6 6 12 21.5 30 1700 Forged S360C-08 8 8 16.5 28.5 40.5 2800 Cast S360CF-08 8 8 16.5 28.5 40.5 2400 Forged S360C-10 10 10 20.5 34.5 50.5 3700 Cast S360CF-10 10 10 20.5 34.5 50.5 4100 Forged * Break loads shown applies to ProRig only. Sizes are in mm.
